List view

General information

“List View” is a UI component used for displaying and configuring the “card” presentation of data.

Parameters

Component properties

Settings group Setting Field Value Options Purpose
Name - Name of the UI Component in the system
Common Component Multiselect of Catalog Contains a list of all Components
Number of columns - Number of container columns
Number of rows - Number of container rows
Column gap - Column spacing
Row gap - Line spacing
Page size - Container size
Manual reload true, false Ability to manually reload data
Hide page selector true, false Hide page selector
Enable drag and drop true, false Enable drag-and-drop feature
Drag and drop group - Drag-and-drop group (if any)
Automation id - ID for automation
Events On datasource loaded - Data source load event
On loaded - Component load event
On drop - Drag-and-drop event

CSS properties

Settings group Setting Field Value Options Purpose
Layout Width - Component width
Height - Component height
Margin - Outer padding of the component
Padding - Inner padding of the component
Visible true, false Component Visibility
Hidden true, false Component concealment
Orientation Horizontal, Vertical Component orientation
Appearance CornerRadius - Radius of corner rounding
BorderThickness - Component border thickness
Opacity - Component transparency
Brush Background - Component background color
BorderBrush - Component border color

Using drag-and-drop feature

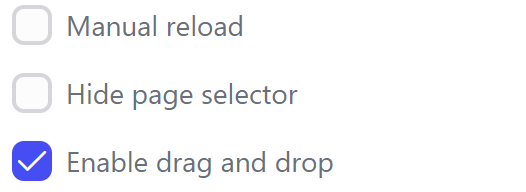

First, in the “Common” group of settings, you need to select the following option:

After saving and publishing, drag-and-drop will already be available for this list-view on the work-place. For the subsequent correct operation, you need to go to the component script and prepare the function for handling the drag-and-drop (on drop) event.

Here's an example of the function applied to a canban board that consists of a main list-view and a nested list-view. The main one performs the function of the stages of the sales funnel and is in a horizontal position, while the nested one contains the deals themselves and is in a vertical position. The function takes the ID of the object being dragged (in this case, the deal) and the stage to which the deal is transferred, then calls the dataflow and, if completed successfully, updates the list-view, moving the deal to a new stage:

Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
def OnMove(dstList, srcList, dataObject, oldIdx, newIdx):
    context.Logger.Info("Callback on move")
    # The new Busy(boolean) method puts the UIElement into a loading status,
    # showing or hiding the loader
    srcList.Busy(True)
    dstList.Busy(True)

    # The new GetDynamicFilterValue(string) method computes the value of a Dynamic filter.
    # If there are two filters on one field, the first in the list is computed
    stage = dstList.GetDynamicFilterValue("data.Stage")

    # Creating a model to call the data-flow
    flowModel = {"Stage": stage, "OrderId": dataObject.Id}
    # Calling the data-flow with a new overload for onComplete and onError
    context.ExecuteDataflow("783cf3e3-d8f8-4551-8447-13be4f738e41", flowModel,
    lambda res: OnDataflowComplete(res, dstList, srcList),
    lambda ex: OnDataflowError(ex, dstList, srcList))

def OnDataflowComplete(dataResult, dstList, srcList):
    # The new Busy(boolean) method puts the UIElement into a loading status,
    # showing or hiding the loader
    srcList.Busy(False)
    dstList.Busy(False)
    # Refreshing the lists
    srcList.Refresh()
    dstList.Refresh()

def OnDataflowError(exception, dstList, srcList):
    # The new Error(boolean, string) method puts the UIElement into an error status,
    # displaying the error message
    srcList.Error(True, "An error occurred")
    dstList.Error(True)
    context.Logger.Error(exception, "An error occurred during the data-flow call")

Cases

  • Data Display: Effective for presenting data in the form of cards or lists.
  • User Interface: Suitable for interfaces that require representation of information in the form of cards or lists.

Exceptions

  • Limited Flexibility: Not suitable for displaying data beyond the card or list format, as it specializes in a specific visual representation.
  • Visual Limitations: The style and design may be limited by CSS settings, which may not meet all the design requirements.
